Data + Data Modeling

Data | Data Exchange Formats | Data Modeling

UIC logo

Objectives

  • Data Exchange Formats
    • JSON | XML | Protobuf
  • Requesting Data
    • XMLHTTPRequest | Fetch | AJAX
    • Modern Frameworks
  • Understanding what is Data
  • Data Modeling
    • Conceptual | Logical | Physical
  • Implementing SQLite into Node.js app
  • Database Security Measures

What is Data?

Raw Data

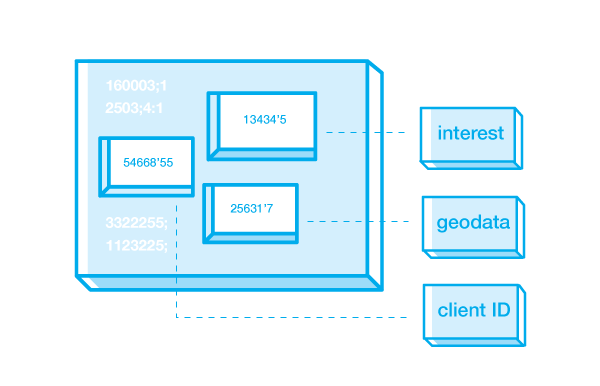

raw data

Data

  • Data - Consist of raw facts

Raw Data

  • Raw Data - indicates that the facts have not yet been processes to reveal their meaning.

The purpose of collecting raw data is to extract meaning.

Data Pyramid

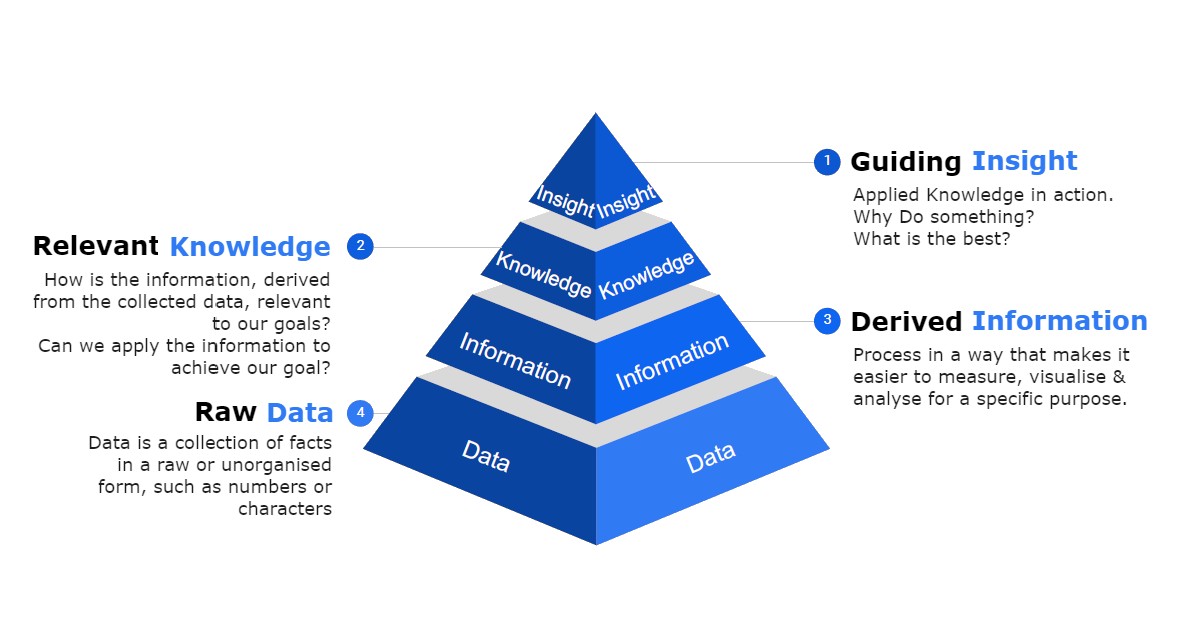

data pyramid

Raw Data

Information

Knowledge

Intelligence / Insight / Wisdom

Why is it important to think of data in this structure?

Data Modeling

Minimum data rule: All that is needed is there, and all that is there is needed

Conceptual Design

  • Design a database independent of database software and physical details Conceptual data model – Describes main data entities, attributes, relationships, and contraints

Logical Design

  • The process of transforming (or mapping) a conceptual schema of the application domain into a schema for the data model
  • some software is typically to create and map this model

Physical Design

  • modifies how the data is formatted (framed) and transported between the client and server, both of which manage the entire process, and hides all the complexity from our applications within the new framing layer
  • The process of transforming logical data models into physical data Models

Conceptual Model

Types of ER-Models

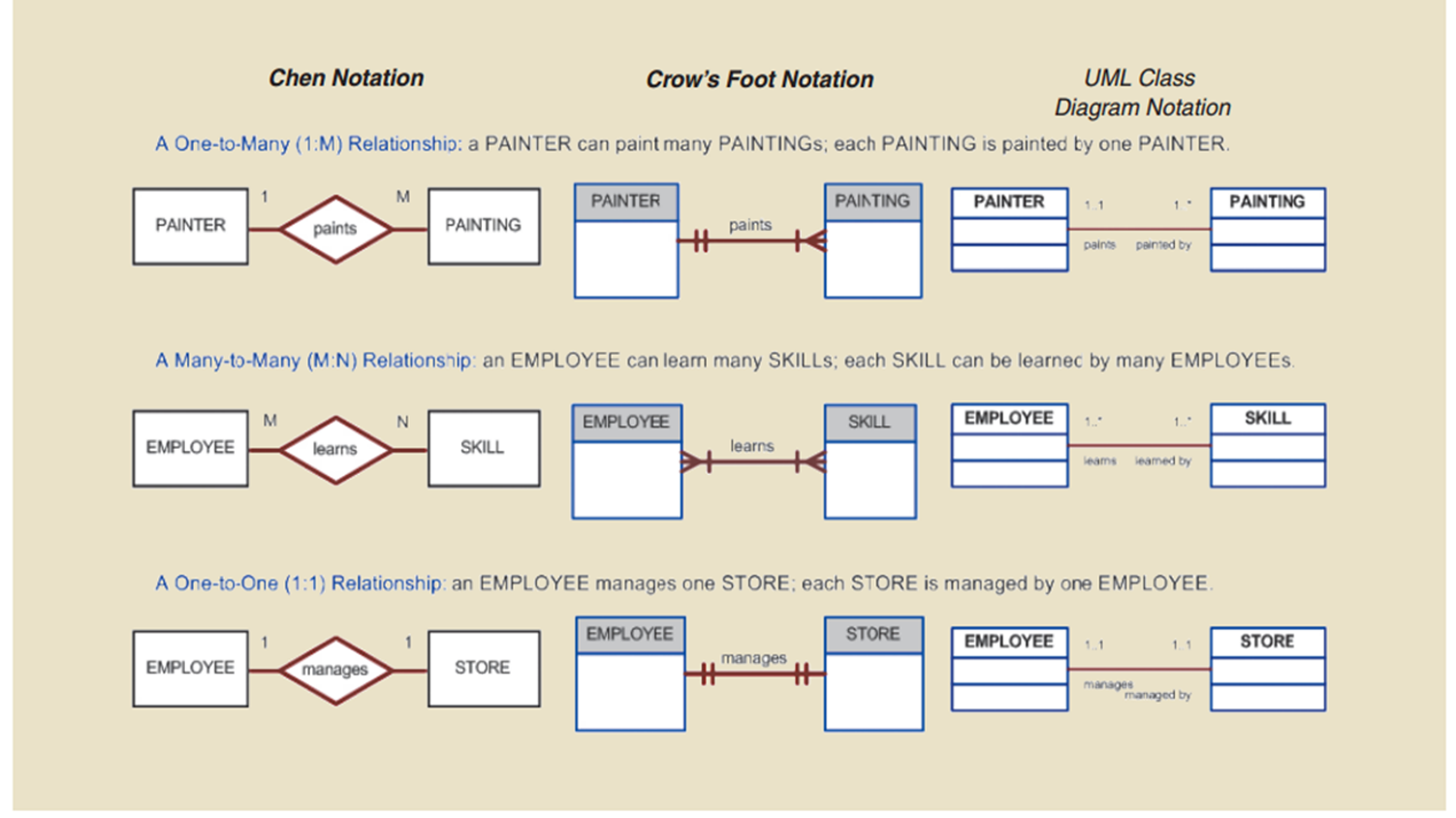

Different types of ER models

Conceptual Model Cont.

Conceptual Modeling is an iterative process that requires you to constantly revisit your conceptual model and make alterations

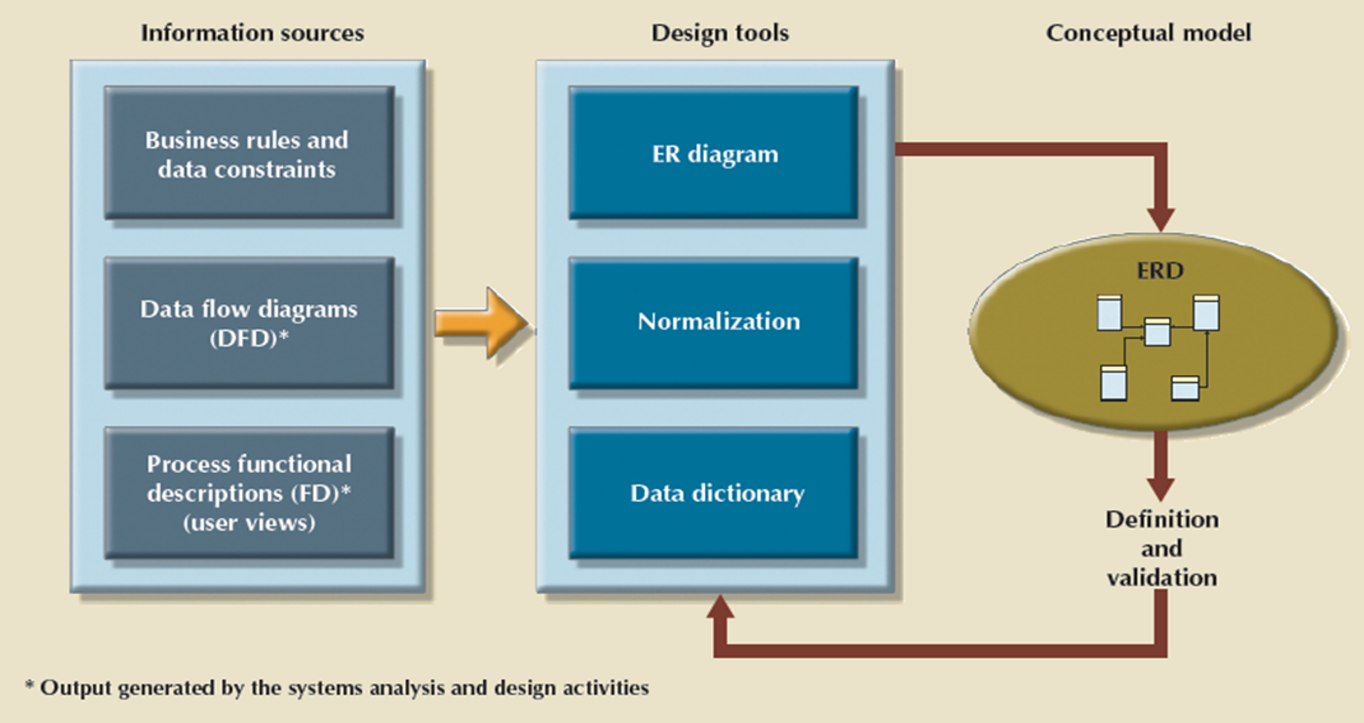

stages of ER models

MPLS Renters Example

Entities and the Relationships that exist

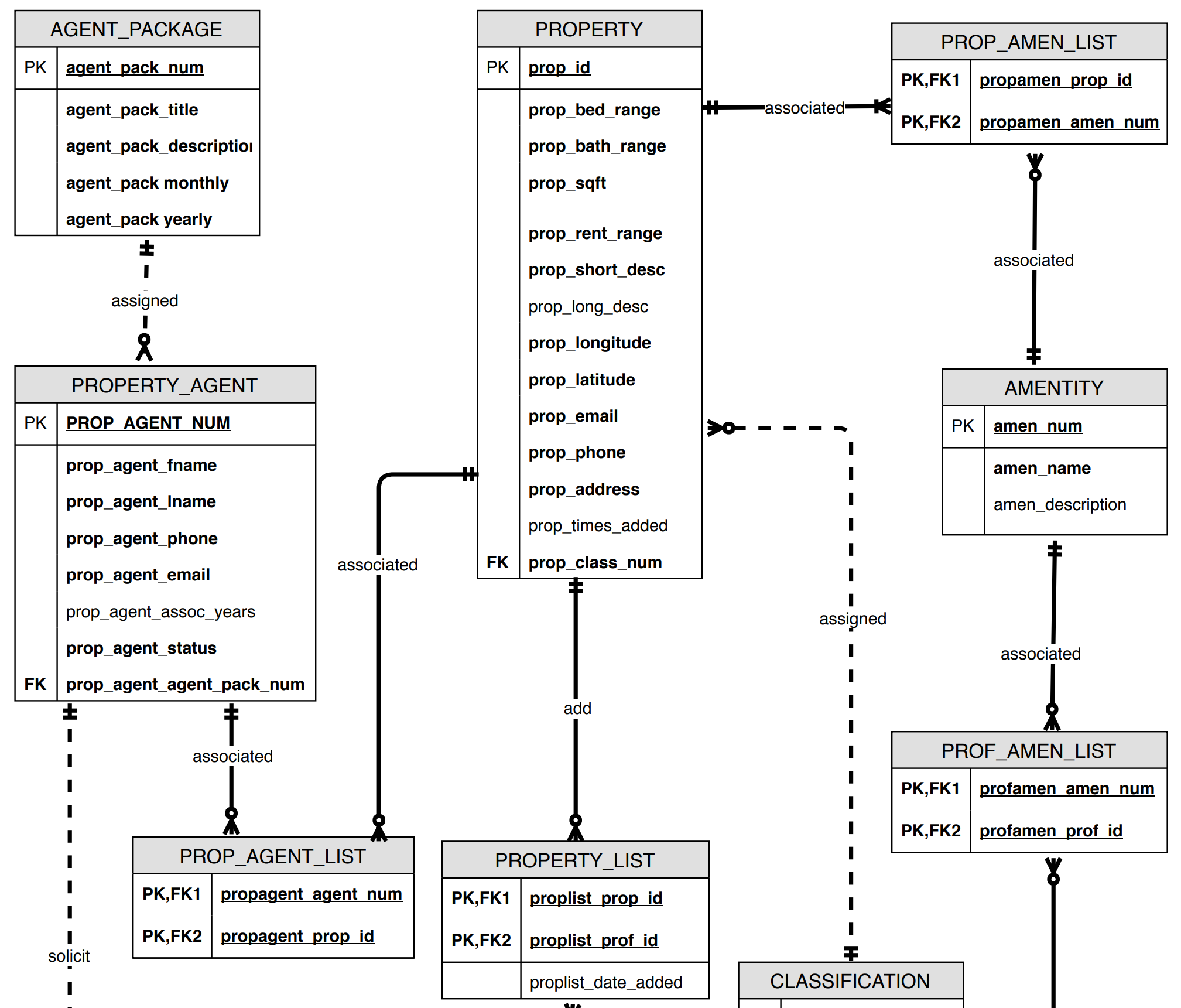

sample ER models

Subset of Relationships Rules:

  • A PROPERTY can be associated with one or more PROP_AMEN_LIST, each PROP_AMEN_LIST can be associated with one PROPERTY
  • A PROPERTY can be added zero or morePROPERTY_LIST, each PROPERTY_LIST can be added to one PROPERTY

MPLS Renters Example

Entities and the Relationships that exist

sample ER models

What is Depicted in ER Diagram:

  • Entity Name
  • Entity Strength
  • Relationship Strength(Week and Strong)
  • Cardinality
  • Null vs. Not Null
  • Sometimes the Data type

Logical Model

Logical Model

A logical design is a conceptual, abstract design. You do not deal with the physical implementation details yet; you start to define the types of information that you need.

Data Modeling Logical and Pysical Requirements

Different Types of DB

Selection of DB should be based upon how, when, where and who will use the data.

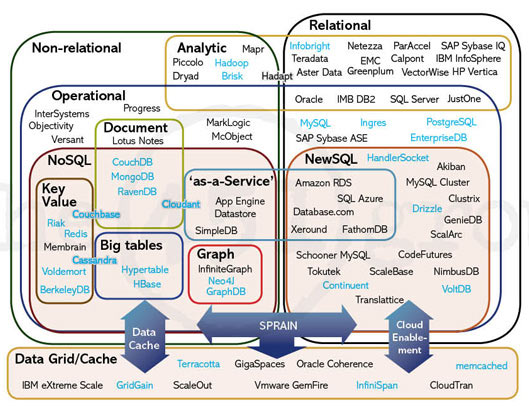

Database Types and brands

Relational & Non-Relational are the overarching categories of DB's

Tools

A number of tools can help with visualizing and database script creation

ER Modeling tools
- Draw.io
- ER Concepts 8
- SQL Designer
Database Interface Tools
- DB Browser
- DB Beaver
- MySQL Workbench
IDE/Editor tools

SQL Statement to execute our example

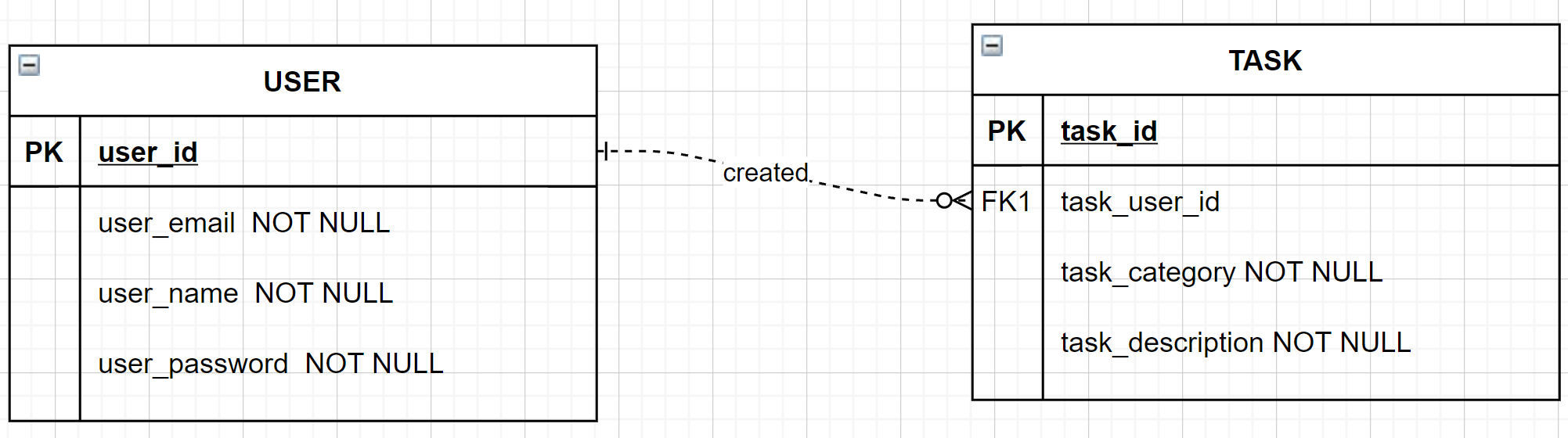

Entity Relationship

									CREATE TABLE "USER" (
										"user_id"	INTEGER,
										"user_email"	TEXT NOT NULL,
										"user_password"	TEXT,
										PRIMARY KEY("user_id" AUTOINCREMENT)
									);

									CREATE TABLE "TASK" (
										"task_id"	INTEGER,
										"task_user_id"	INTEGER NOT NULL,
										"task_category"	TEXT,
										"task_description"	TEXT,
										FOREIGN KEY("task_user_id") REFERENCES "USER"("user_id"),
										PRIMARY KEY("task_id" AUTOINCREMENT)
									);





Physical Model

Database Tables Created

  • 1) Create Tables
  • 2) Columns - Primary key determination, Null or Not Null identified, Column constraints
  • 3) Querying of Tables using SQL
  • 4) Load Balancing and Database Optimization using index's and hybrid tables (views)
  • 5) Restricting database access and authorization. Who has DDL or DML querying priveleges?

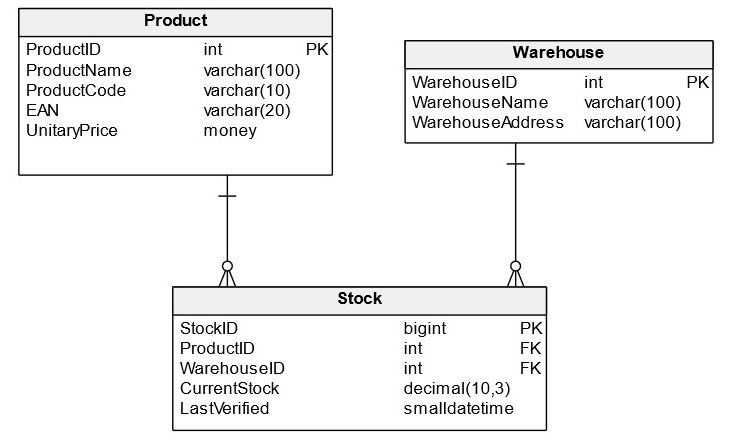

physical layer view

Which of the following statements is not true regarding the conceptual and physical layer?

  • A. Entities in Conceptual model map to Tables in the Physical model
  • B. Attributes in the Conceptual model map to table columns in the Physical model
  • C. The physical layer does not depict whether columns can be null or not null.
  • D. All of the options presented are true statements

(True or False) A Weak entity can be determined by the specification of the key?

  • A. True
  • B. False

(True or False) A Weak relationship in a conceptual model is indicated by a solid line linking the two entities?

  • A. True
  • B. False

Node.js and SQLite

Getting Started with Implementing SQLite Database

SQLite - Configuration steps below:

  • Step 1 - Import database drivers via NPM
  • Step 2 - Make connection to database
  • Step 3 - Query Database
  • Step 4 - Configure session store

Step 1 - Install Dependencies

When incorporating a database, we need both the drivers and functionality to configure our session store


								npm install sqlite3 //install sqlite database drivers
								npm install connect-sqlite3  //install module to configure session store




Step 2 - Making connection to Database

Create a config file that will store your configurtion


									var sqlite3 = require('sqlite3').verbose() //npm install sqlite3
									const bcrypt = require('bcryptjs');

									//Creating a new database instance - Indication of connected database
									//Before peforming any operations to database, make sure database is connected.
									let db = new sqlite3.Database('./mplsrenter.sqlite', (err) => {
										if (err) {
										  // Cannot open database
										  console.error(err.message)
										  throw err
										}else{
											//Successful database connection
											console.log('Connected to the SQLite database.')
										}
									});



Step 3 - Context File "database.js"

Helpful to place database operations into a file and import database functions into other parts of program when needed.

Helpful resource on querying database https://www.sqlitetutorial.net/


									//Create a profile
									let createProfile = (profile) =>{
										var createProfileSql ='INSERT INTO PROSPECTIVE_PROFILE (prof_id, prof_firstname,prof_lastname, prof_address, prof_decision_date, prof_email, prof_password, prof_phone, prof_rent_range, prof_image_url, prof_class_num) VALUES (?,?,?,?,?,?,?,?,?,?,?)'
										var params =[null, profile.firstName, profile.lastName, null, profile.move_date, profile.userEmail, profile.user_password, null, profile.user_rent_range, './images/user_profile_images/generic_profile_img.png', null];

										db.run(createProfileSql, params, function(err){
											if (err){
												return console.log(err.message);
											}
											console.log("Profile Created");
											console.log(`Rows inserted ${this.changes}`);
										});
									}

									//Return a user from database
									let authenticateUser = (username, password, done) =>{

										var findUser = 'SELECT * FROM PROSPECTIVE_PROFILE WHERE prof_email = ?';

										db.get(findUser, username, function (err, user) {
											console.log(user);
											if (!user) {
											  return done(null, false);
											}
											bcrypt.compare(password, user.prof_password, function (err, result) {
											  if (err) {
												return console.log(err.message);
											  }
											  if (result) {
												return done(null, user);
											  }
											});

										  });
									}

									//Export functions to be used in other areas of program.
									module.exports = {db, createProfile, authenticateUser}




Step 4 - Configure session store

NPM module reference - connect-sqlite3


									//Require dependencies you installed
									var createError = require('http-errors');
									var express = require('express');
									var session = require('express-session');
									var path = require('path');
									var cookieParser = require('cookie-parser');
									var logger = require('morgan');
									var hbs = require('hbs');
									const passport = require('passport');
									var session = require('express-session');
									var SQLiteStore = require('connect-sqlite3')(session);

									//passport config
									require('./config/passport')(passport);

									var session_config = {
											secret: 'secret', //a random unique string key used to authenticate a session
											resave: true, //nables the session to be stored back to the session store, even if the session was never modified during the request
											saveUninitialized: true, //his allows any uninitialized session to be sent to the store. When a session is created but not modified, it is referred to as uninitialized.
											cookie: { secure: true }, //true is a recommended option. However, it requires an https-enabled website
											//store  parameter when saving session to database
											store: new SQLiteStore
									};

									session_config.cookie.secure = false;
									//IMPORTANT REVIEW IN CLASS - https://expressjs.com/en/resources/middleware/session.html

									//Express Sessions
									app.use(session(session_config))
									//Reference for above - https://www.section.io/engineering-education/session-management-in-nodejs-using-expressjs-and-express-session/


									//Passport middleware
									app.use(passport.initialize());
									app.use(passport.session());



Database Security Measures

Database Security Measures

Hashing Passwords

Prevent SQL Injection

Parameterized Queries

Configuration File Security Measures

Column Contraints

Hashing Passwords


								// 1)Install bcrypt npm module --> npm install bcryptjs

								// 2) Make bcrypt resource available to file
								const bcrypt = require('bcryptjs');

								const hashedPassword = await bcrypt.hash(req.body.password, 10);

								// 3) Input hashedPassword into Database


  • Hashing Passwords - are functions that generate a fixed-length result (the hash, or hash value) from a given input
  • Salting - Use to protect against rainbow table attacks, salting adds an element of randomness to the hashing algorithm

Prevent SQL Injection

SQL injection attacks targets websites that use an SQL database

SQL injection occurs when the web server insecurely constructs the SQL statement in passes to the database driver

Object Relational Mapping Libraries - map rows in database tables to code objects in memory meaning the developer generally doesn't have to write their own SQL statements.


							//Example injection attack - uses the email & password parameters taken from the HTTP request and inserts
							"SELECT * FROM users WHERE email = 'cifulton@uic.com' ---' AND encrypted_password='B$DNA9HT'";
							//SQL control characters such as ' changes the meaning of the SQL statement



In the above example, the database driver executes only the SQL statment, and ignores everything that comes after it.

This type of attack, the single quote character (') closes the email argument early and the (--) tricks the database driver into ignoring the end of the statement that checks for password

Parameterized Queries


								var createProfileSql ='INSERT INTO PROSPECTIVE_PROFILE (prof_id, prof_firstname,prof_lastname) VALUES (?,?,?)'
								var params =[null, profile.firstName, profile.lastName];

								db.run(createProfileSql, params, function(err){
									if (err){
										/**res.render('auth', {oops: "Unable to Create profile "});**/
										return console.log(err.message);
									}
									console.log("Profile Created");
									console.log(`Rows inserted ${this.changes}`);

								});





Configuration File Security Measures

Using a tool that allows you to load environment variables

File/folder should also be included within your .gitignore


							//Example is dotenv npm package - npm install dotenv
							require('dotenv').config()
							DB_HOST=localhost
							DB_USER=root
							DB_PASS=s1mpl3





Column constaints

Helps restrict what can be saved to your database. Helps with XSS attacks.

Server-side code validation
- Code should implement measure for data validation

Database constraints
- Enforcing at the database level
