Http(s)/http/2 + TLS/SSL

Data-in-Transit & Encryption

UIC logo

Objectives

  • Terminology
  • Http(s)/Http2
    • What is Hypertext Transfer Protocol?
    • Request and Response Objects
  • Encryption + TLS/SSL
    • Encryption - Asymmetric Encryption | Symmetric Encryption | Hash Functions
    • TLS/SSL Handshake
    • Certificate Authorities

Question 1

Uses the same key to encrypt and decrypt a message?

  • A. asymmetric encryption
  • B. symmetric encryption
  • C. hash function
  • D. cipher suite

Question 2

Term used for data prior to encryption?

  • A. cipher text
  • B. data-in-transit
  • C. default text
  • E. plain text

Ton's of Acronyms - Activity

Http(s)

TCP

TLS

CSR

MAC

EV Cert.

CA

DNS

ECDHE

Http/Http(s)

Hypertext Transfer Protocol

URL Breakdown

an application layer protocol designed to transfer information between networked devices and runs on top of other layers of the network protocol stack.

http

  • protocol for transmitting hypermedia documents, such as HTML[Data-in-Transit - Plain text]

https

  • is encrypted in order to increase security of data transfer [Data-in-transit - cipher text]

http/2

  • modifies how the data is formatted (framed) and transported between the client and server, both of which manage the entire process, and hides all the complexity from our applications within the new framing layer

HTTP/2 overview

The primary goals for HTTP/2 are to reduce latency by enabling full request and response multiplexing, minimize protocol overhead via efficient compression of HTTP header fields, and add support for request prioritization and server push.

http2 binary_framing Layer

Encryption

Encryption Algorithm takes input data and scrambles it by using an encryption key - a secret between two parties

Symmetric

  • - Uses the same key to encrypt and decrypt data
    - Operate as block ciphers they break the input data into fixed-size blocks that can be individually encrypted

Asymmetric

  • - Uses different keys to encrypt and decrypt data.
    - Sometimes called public-key cryptography the encryption key (public key) can be published; only the decryption key (private key) needs to be kept secret.

Symmetric vs. Asymmetric

Visual without going into much detail

one key
key-pair

Hash Functions

Cryptographic hash functions which can be thought of as encryption algorithms whose output cannot be decrypted.

Using hashing algorithms is typically how passwords are stored in a database. The web server store the hashed value of the password in the database but will deliberately forget the actuall password value.

picture of hashing algorithm process

What is this below?
ECDHE-ECDSA-AES128-GCM-SHA256

Cipher Suites

A set of algorithms used to secure communication - Consist of three separate algorithms

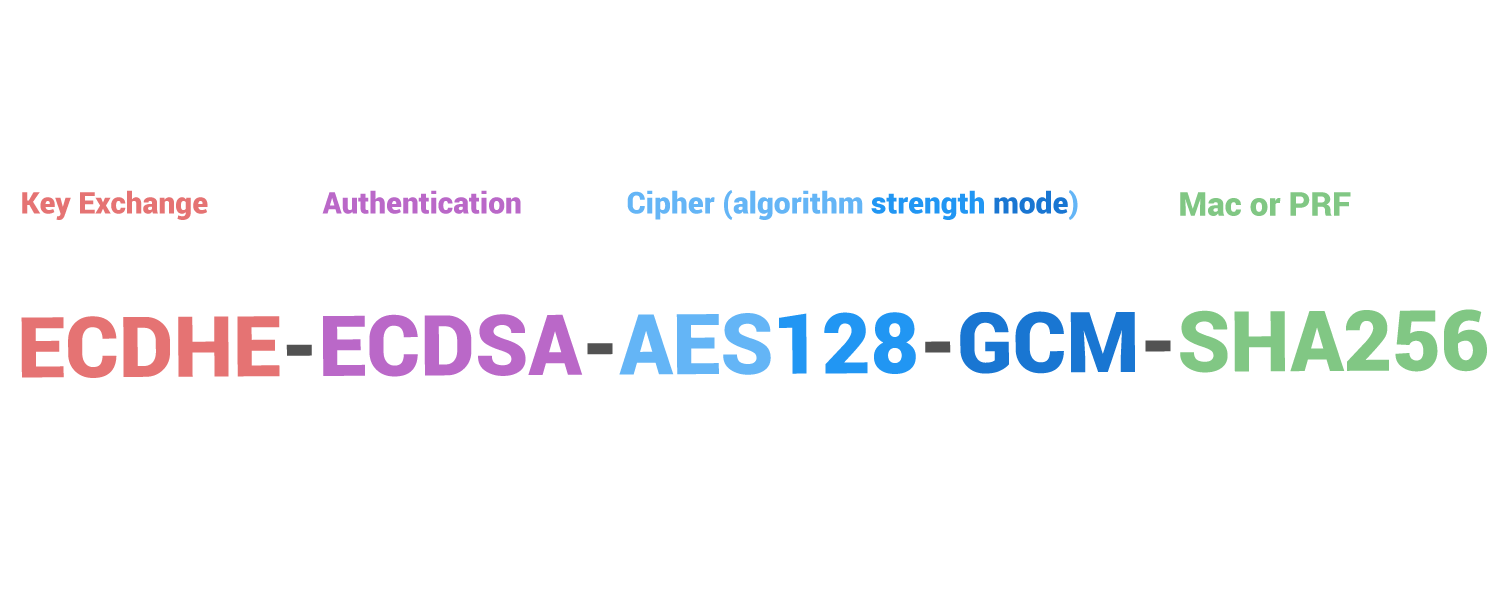

cipher suites graphic

key-exchange algorithm
asymmetric encryption algorithm used to exchange secret keys

Symmetric algorithm
block cipher designed for encrypting the content of TCP packets

MAC Algorithm
authenticating the encrypted messages.

TLS Handshake Steps

  • 1) Determines version of TLS and list cipher suites.
  • 2) Webserver selects the most secure cipher suite it can support and instructs browser to use those algorithms for comm.
  • 3/4) Same time as step 2, the server passes a digital certificate, containing the server name, the certificate authority(who validates Authenticity)
  • 5) Browser verifies authenticity with certificate authorities
  • 6) The two machines generate a session key that will be used to encrypt the TLS conversation
  • 7) Session specifications are set and encrypted communication can take place

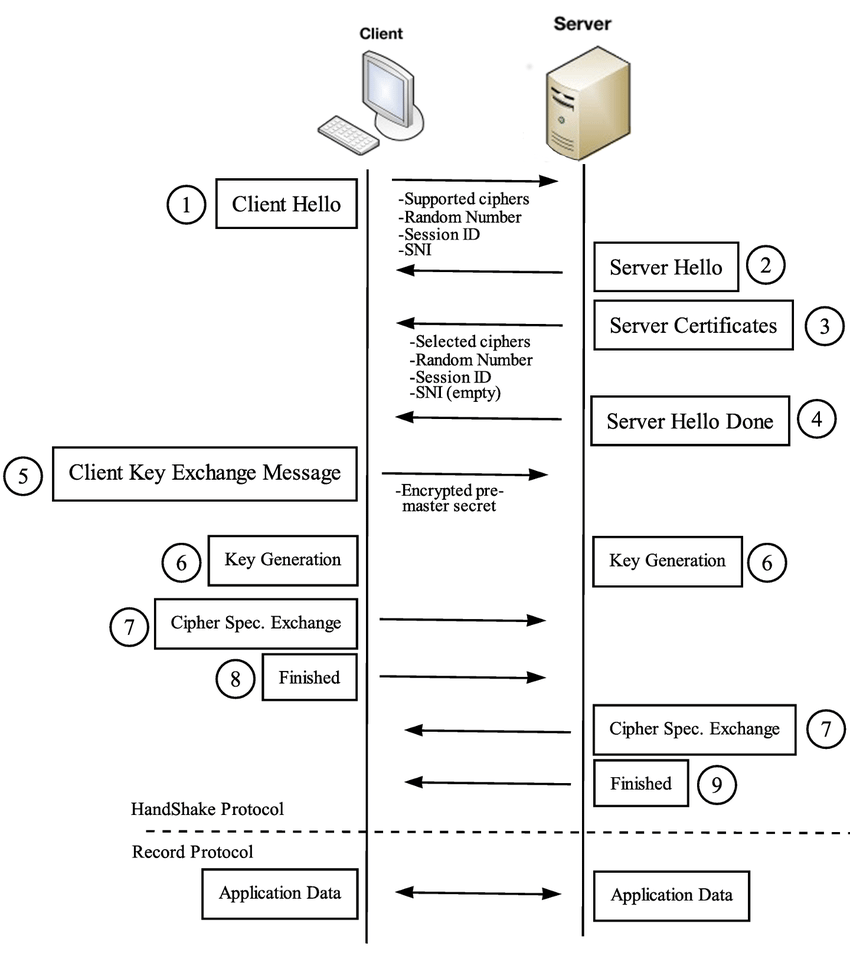

visual of TLS handshake

Aproximate time it takes to complete TLS Handshake?

  • A. About 300 - 400ms
  • B. 2 - 3 seconds
  • C. About 1 second
  • D. 50 - 150ms
  • E. 500 - 800ms

Digital Certificates

Suggested Reading

  • Forthcoming
